About the Domino
Domino is de Manincor’s latest offering on the wood-burning stove scene. Boasting clean-cut lines and a contemporary look, Domino is perfect as a cooking range, but works equally well as a high- performance stove.
Domino 6 and Domino 8 come with extra-large stoke-holes, an unusual and much sought-after feature on such a high-specification stove.
The large horizontal firebox on the Domino 8 accommodates logs up to 60cm long. Thanks to the panoramic window, the cooking range also plays an active role in creating a pleasing atmosphere. Fitted with a light and a damper, the oven accommodates the largest backing tray in its class.

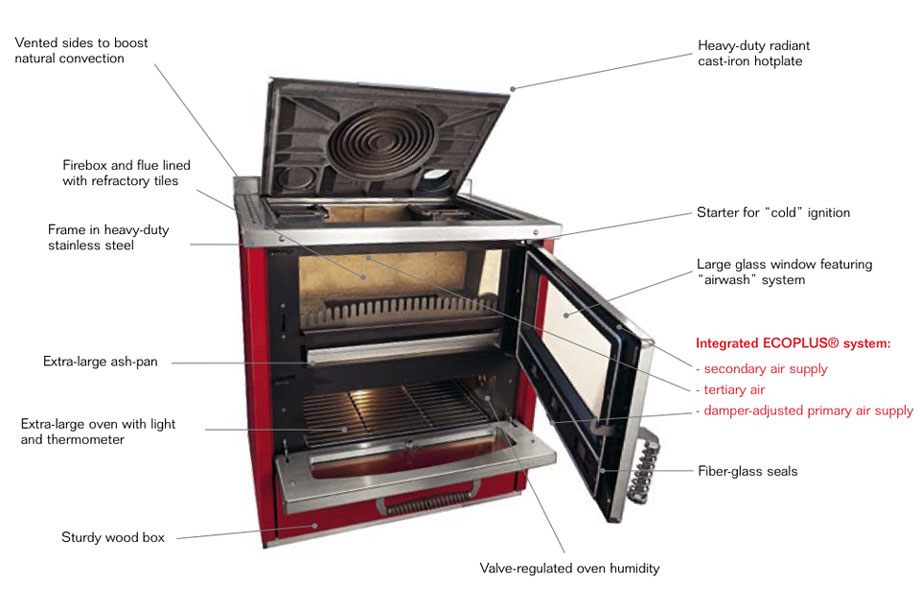

Features:
- Integrated ECOPLUS® system provides clean and efficient combustion
- Heavy-duty radiant cast-iron hotplate for maximum conduction
- Firebox and flue lined throughout with refractory tiles to provide maximum output, increased temperature stability and premier oven performance
- Fire door fitted with panoramic window; the firebox being horizontal, all the flames are visible from all angles
- Glass is kept clean thanks to "airwash" effect created by secondary air
- Integrated tertiary air for optimal combustion
- Large-size oven fitted with thermometer, and humidity- regulating system. The performance is boosted by a double flue that provides for even cooking at temperatures up to 300°C. Ideal for cooking pizza, cakes...
- Vented sides enhance conduction, creating a clean and uniform flow of heat throughout the space in which the Domino stove is located
- Flue above or, on request, to rear, either left or right
| D6 | D8 | D8 Maxi | ||
| Efficiency | 70%+ | 70%+ | 70%+ | |
| Nominal Output | kw | 7.5 | 10 | 10 |
| Measured CO (on 13% of oxygen) | % | 0.21 | 0.21 | 0.21 |
| Average hourly consumption | kg/h | 2-2.5 | 2-2.5 | 2-2.5 |
| Required flue depression | mbar | 0.12 | 0.12 | 0.12 |
| D6 | D8 | D8 Maxi | |||
| Dimensions: external | LxPxH | cm | 60x60x86 | 80x60x86 | 80x60x86 |
| Dimensions: oven | LxPxH | cm | 34x47x15 | 54x47x15 | 54x47x26 |
| Dimensions: fire box | LxPxH | cm | 38x25x25 | 57x25x25 | 57x25x25 |
| Dimensions: stoke-hole | LxH | cm | 35x20 | 55x20 | 55x20 |
| Hotplate | LxP | cm | 45x48 | 66x48 | 66x48 |
| Net Weight (inc. packaging) | kg | 180/195 | 195/215 | 195/215 | |

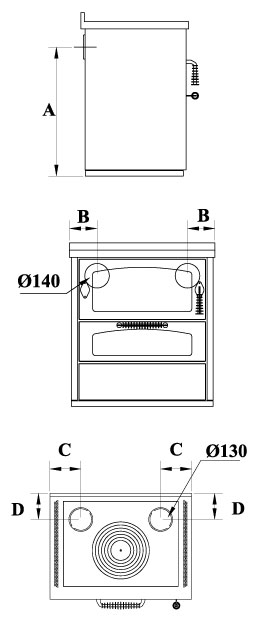

| Above flue to right or left | Ø | cm | 13 | 13 | 13 |
| A) Height | cm | 72 | 72 | 72 | |
| B) Side Distance | cm | 15 | 15 | 15 | |
| Rear flue to right or left | Ø | cm | 14 | 14 | 14 |
| C) Side Distance | cm | 17 | 17.5 | 17.5 | |
| D) Distance Wall | cm | 14.4 | 14.8 | 14.8 |
| Red | Blue | Yellow | Black | Stainless Steel | White |
 |
 |
 |
 |
 |
 |
| High Performance Plate | Hotplate Cover |
 |
 |
| Stainless Steel/Brass Cover | Stainless Steel Hotplate for Gas Kitchens |
 |
 |
Handles
| Stainless Steel D1 | Stainless Steel D2 | |
| Domino Handles |  |
 |
| Stainless Steel | Brass | |
| Standard Finishes (Handles) |  |
 |
Knobs
| Polished Stainless Steel | Brass | Satin-Finish Stainless Steel |
 |
 |
 |
| Arte 11 | Arte 12 | Arte 13 | Arte 14 | |
| Black |  |
 |
 |
 |
| White |  |
 |
 |
 |
| Red |  |
 |
 |
 |
| Blue |  |
 |
 |
 |
| Green |  |
 |
 |
 |
| Brass |  |
 |
 |
 |

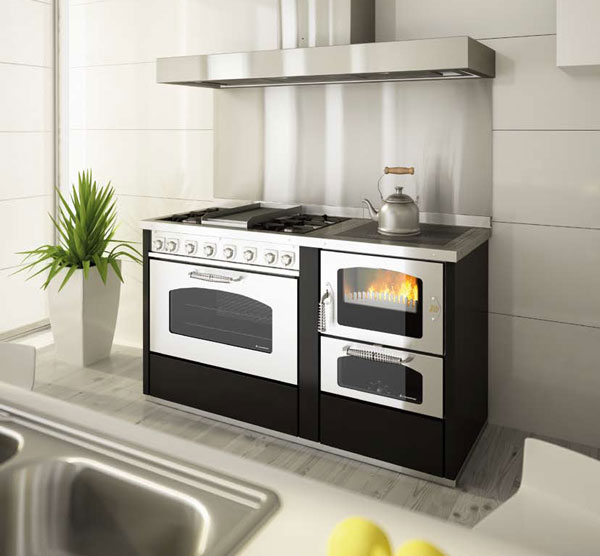

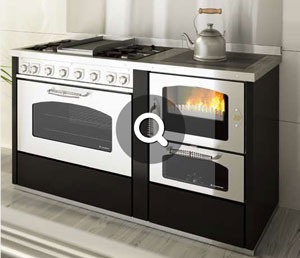

Domino Gas
Domino 6 and Domino 8 can be integrated with gas burners Domino 7 and Domino 9. They are supplied with four or five professional gas burners, one of which offers 3.6KW output and is fitted with a triple bezel burner, eight-function electric oven, static and fan-assisted, with large storage drawer for cooking vessels
- Extra-large work surface
- Triple-bezel maxi burner
- Hard-wearing cast-iron grates
| Domino 7 Gas | Domino 9 Gas | |||
| Dimensions: external | LxPxH | cm | 70x60x86 | 90x60x86 |
